11,000Lb Excavator
E50
Contact Us
Currently Available
Options

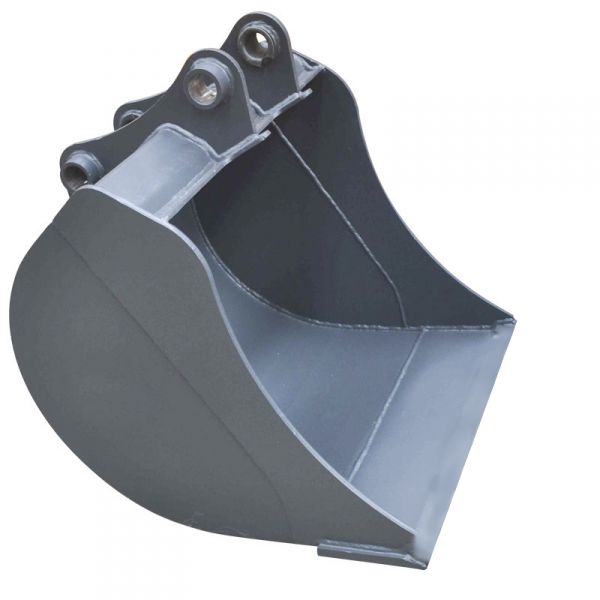

Bucket Type: Smooth - Sizes: 24", 30" & 36"

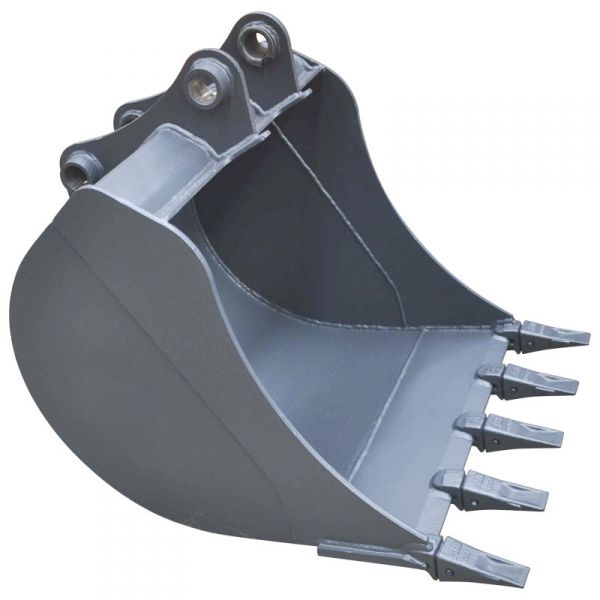

Bucket Type: Tooth - Sizes: 24", 30" & 36"

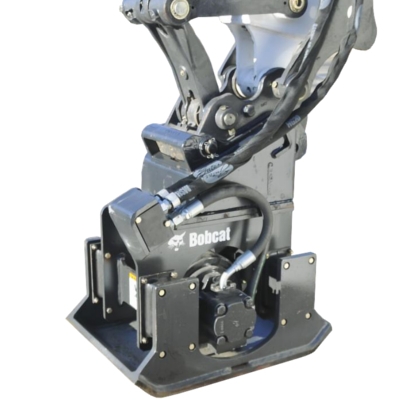

Attachment Type: Plate Compactor
Specs:
Top Tasks
-Compact trenches, footings and slab areas
-Drive piles when building retaining walls and compacting soil

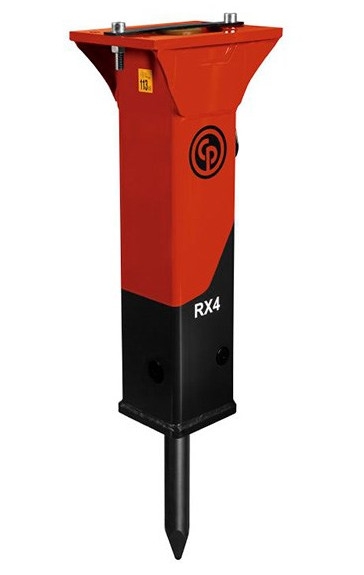

Attachment Type: Hydraulic Hammer
Specs:
Top Tasks
-Breaking up concrete

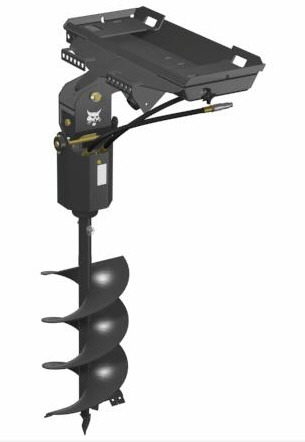

Attachment Type: Auger Unit
Specs:
Top Tasks
-Direct drive augers are ideal for digging holes for posts, piers, poles, or trees.
-Planetary augers deliver the power and force needed to dig in anchor applications and through other extreme ground conditions including rock, shale, clay and frost.
Features
Standard
-Engine Shutdown
-Auxiliary Hydraulics
-Quick Tach System
-Rubber Track
-Selectable Auxiliary Hydraulic Flow
Equipment specifications
Engine
Emissions Tier (EPA)
Tier 4
Fuel
Diesel
Maximum Governed RPM
2,400 rpm
Horse Power
49.8 hp
Performance
Operating weight
Standard: 10,677 lbs | Extendable Arm: 11,195 lbs
Weight Class
Standard: 4.8 t | Extendable Arm: 5.1 t
Travel Speed - High
Standard: 3.1 mph | Extendable Arm: 3.1 mph
Travel Speed - Low
Standard: 1.9 mph | Extendable Arm: 1.9 mph
Arm Digging Force
Standard: 6,744 lbf | Extendable Arm: 5,751 lbf
Bucket Digging Force
Standard: 8,977 lbf | Extendable Arm: 8,977 lbf
Rated Lift Capacity
Standard: 6034 lbs | Extendable Arm: 5926 lbs
Lift Radius
Standard: 118" | Extendable Arm: 118"
Boom Swing - Left
Standard: 75° | Extendable Arm: 75°
Boom Swing - Right
Standard: 50° | Extendable Arm: 50°
Maximum Dig Depth
Standard: 11.6 ft | Extendable Arm: 12.9 ft
Max Dump Height
Standard: 12.7 ft | Extendable Arm: 13.6 ft
Maximum Reach at Ground Level
Standard: 19.5 ft | Extendable Arm: 20.8 ft
Capacities
Fuel Tank
21.1 gal
Hydraulic System
Auxiliary Std Flow
20 gal/min
Auxiliary Pressure
3,045 psi
Dimensions
Length
Standard: 218.7" | Extendable Arm: 219"
Overall Length in Travel Position
Standard: 218.7" | Extendable Arm: 219"
Width
Standard: 77.2" | Extendable Arm: 77.2"
Height
Standard: 99.7" | Extendable Arm: 99.7"
