E-Z Drill
210B SRA
Contact Us
Currently Available
With the 210B SRA slab rider, you can stitch or drill horizontally, vertically or at an angle with exceptional accuracy and no disturbance to the subgrade. The unit can drill 5/8- to 2-1/2-inch-diameter holes to 18-inch depths, and it has an auto-alignment feature that tracks the hole placement level for fast and easy repositioning. A roller bearing feed system provides friction-free drilling for longer wear life, less maintenance and minimized downtime.
Applications

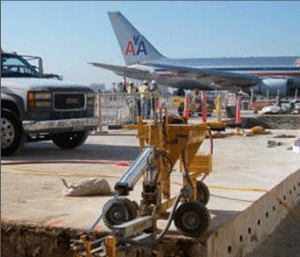

Airport

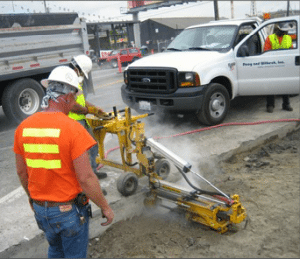

Lane Additions

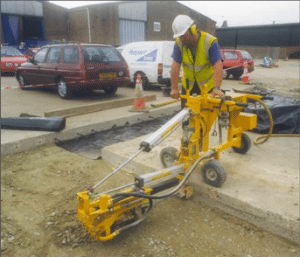

Full-Depth Repair
Horizontal and Vertical Position

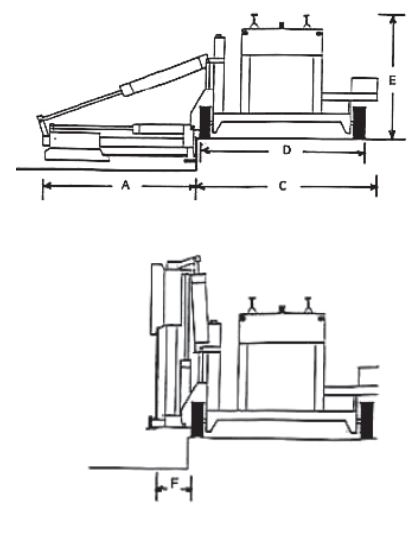

Equipment specifications
Horizontal Position
Lower Length (A)
46"
Overall Length (A) + (C)
94"
Cart Length (C)
48"
Wheel Base (D)
42"
Height (E)
32"
Weight
385 lbs
Width
32"
Drill Distance From Corner
6"
Drill Distance From Ground
3"
Drill Depth (std.)
18"
Drill Bit Diameter
5/8" to 2 1/2"
Distance From Wheel To Center Of Bit (F)
N/A
Vertical Position
Lower Length (A)
N/A
Overall Length (A) + (C)
67 1/2"
Cart Length (C)
48"
Wheel Base (D)
42"
Height (E)
Varies
Weight
385 lbs
Width
32"
Drill Distance From Corner
N/A
Drill Distance From Ground
up to 12"
Drill Depth (std.)
18"
Drill Bit Diameter
5/8" to 2 1/2"
Distance From Wheel To Center Of Bit (F)
15 1/2"
General
Drill Motor (Pneumatic)
CP 32A
Weight
54 lbs
Chuck Size (std)
7/8" to 3 1/4"
Air Consumption (minimum)
100 cfm
Operating Pressure
90 psi
Impact (ft.lbs./blow)
36 fpb
Blows/minute
2200 bpm
Rotations/minute
288 rpm
